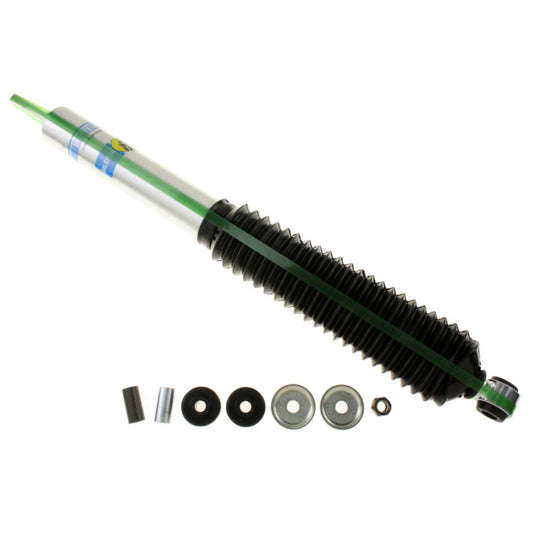

Bilstein B8 5125 46mm Monotube Shock Absorber | Open Box

Bilstein B8 5125 shock absorbers are designed for custom applications that do not have a direct Bilstein fitment. These high gas-pressure, 46 mm monotube shocks are available in various lengths and valve rates for custom suspension builds. They use industry-standard 5/8-inch hourglass bushings and are available in eye/eye or stem/eye mount configurations. The piston uses self-adjusting deflective disc valving.

• Monotube design provides consistent, fade-free performance.
• Patented digressive valving reacts to changing surface conditions.
• Vehicle-specific tuning.

Confirm the required dimensions and mounting configuration for your custom application. To select this shock for a vehicle, use these dimensions:

• Collapsed length: 385.80 mm (approximately 15.19 in)
• Extended length: 619.30 mm (approximately 24.38 in)
• Travel: 233.50 mm (approximately 9.19 in)

Compare these values with the mounting-point dimensions of the truck at full compression and full droop, after the lift.

Part #: 33-230412

Open box. All sales are final. Returns are not accepted.
