100 Series Landcruiser Panhard Correction Kit (PCK)®

The Original PCK® - Weld-on bracket kits to correct the Panhard bar angle on 2-4.5" of lift.

The Panhard Correction Kit returns the panhard bar to horizontal (per the original design), eliminates the need for an aftermarket adjustable panhard bar to recenter the axle, and, in most cases (up to 4 inches of lift), raises the roll center for improved handling (a 4-4.5 inch lift maintains the roll center of an adjustable panhard).

For the 100-series Landcruiser, we’re back to a 2-piece solution due to the overhead height constraints of the LC frame above the axle. The initial 2 inches/50.8 mm of correction are performed by the axle side bracket, with an additional 40 mm available at the frame side, if needed.

Includes:

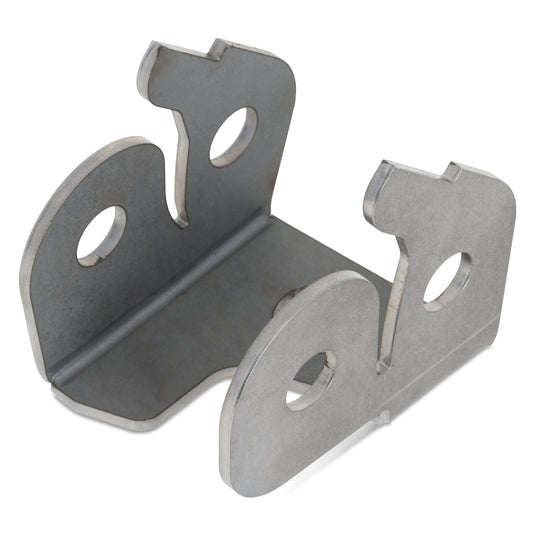

• (1) Frame Side Drop Bracket
• (1) Axle Side Lift Bracket
• (1) eimkeith Logo Decal
