Overview:

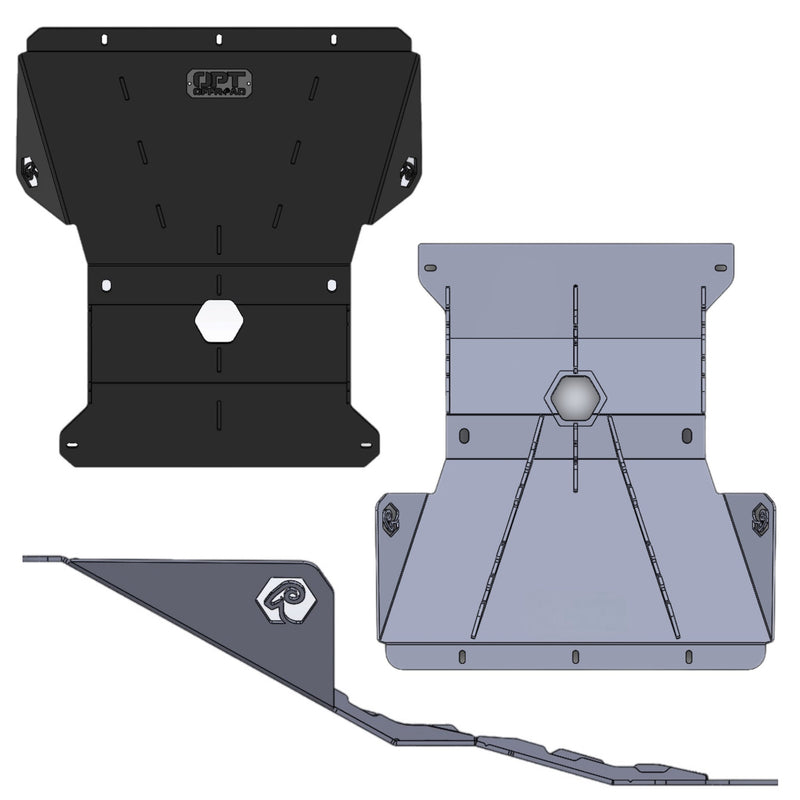

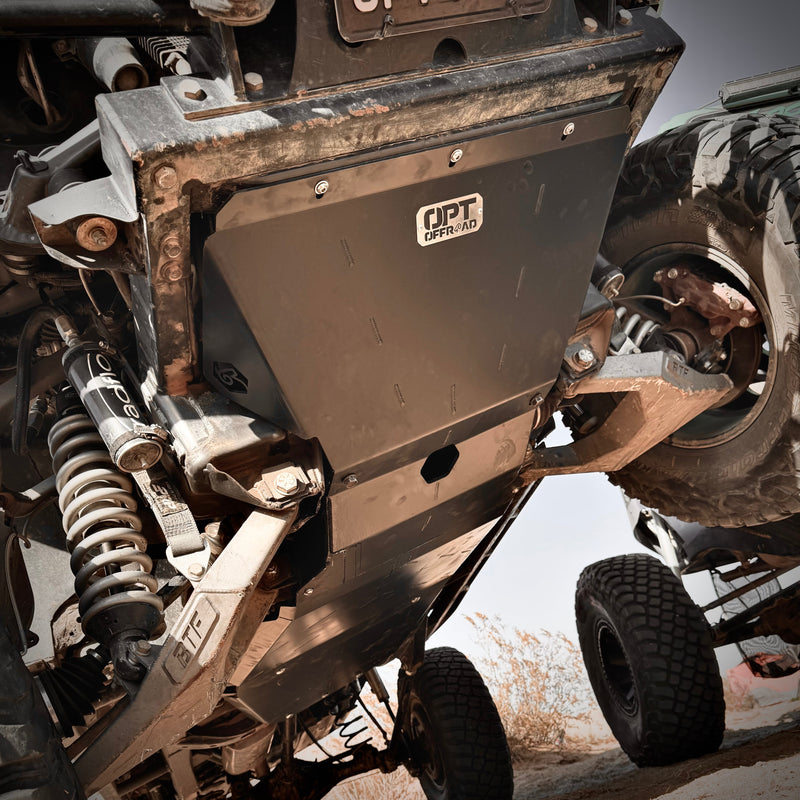

The only high-clearance, fully gusseted skid system available for 1996–2002 4Runners and 1995–2004 Tacomas. Engineered for aggressive off-road use and increased ground clearance, with optional radiator upgrade and multiple coverage configurations.
– Increases clearance by up to 4" front and 2" belly
– Fully bolt-on design with DIY and Welded assembly options
– Compatible with both 2WD and 4WD setups
– Radiator upgrade improves cooling and skid plate integration
– Allows fast access to CV joints and oil drain plug
– Flat belly design reduces hang-ups on trail obstacles
Specifications:
– Laser-cut 3/16" American steel skid plates
– 1/4" steel gusseting (pre-welded or DIY weld)
– High-clearance profile: no step-downs, flat underbody
– Zinc-coated hardware included
– Stainless steel logo plate (raw finish)
– Ships bare metal, ready for custom coating
– Skid hardware uses factory mounting locations
– Oil drain and CV access points built-in
– Not compatible with diff drops
Fitment:
1996–2002 Toyota 4Runner
1995–2004 Toyota Tacoma
Notes:
High Clearance Radiator required for most installs—available as add-on. Not compatible with differential drop kits. Fully Belly package does not fit Tacomas or 2WD 4Runners. Skids ship in 3–4 weeks; radiator kits ship in 2–8 weeks. KD Crossmember Reinforcement recommended for alignment cam protection. HD Skid Plate Crossmember recommended for improved front mounting strength.
