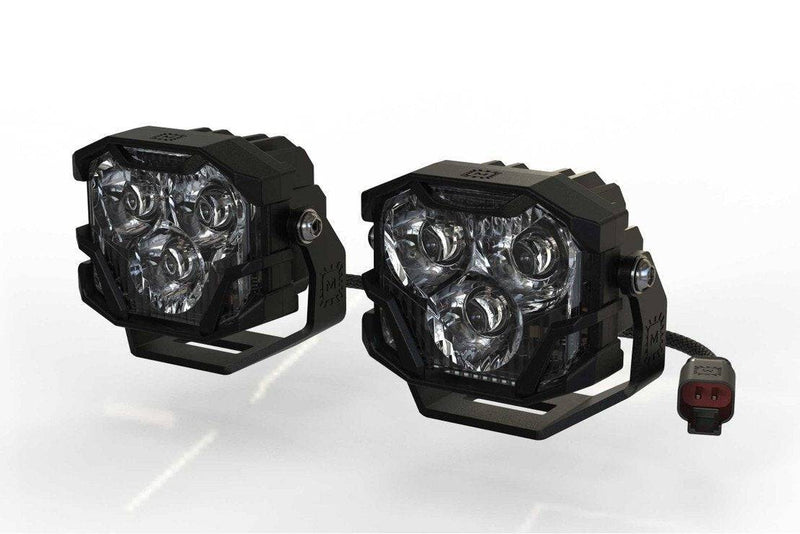

Morimoto 4Banger HXB LED Pods

Regular Price $500.00
Sale Price $500.00 Regular Price
Sale Sold Out
Unit price
Shipping calculated at checkout.
This is a pre order item. We will ship it when it comes in stock.
Vendor Morimoto

SKU: 96948

OFF-ROAD REINVENTED: Since 2008, Morimoto has been building the best lighting upgrades for the automotive aftermarket... Consistently turning out products packed with more performance, reliability, and best in-class fitment & style. As a new player in the off-road game, we have embraced that philosophy big time, pumped up the Redbull intake, and now it's time for the old competition to rethink their strategy. The brand new, patent-pending line of 4Banger HXB Off-Road LED lights were completely designed, engineered, and tested in the USA, and everything about them is truly next level.

HXB SPOT BEAM: Illuminates far into the distance unlike anything else on the market. The HXB Spot comes standard with the most powerful Osram LEDs, which in combination with the HXB LED optics produces a beam pattern capable of penetrating up to 800 meters into your future. No matter the speed, you'll never outrun your ability to see with the 4Banger HXB Spots.

FORM MEETS FUNCTION: The overall footprint of the 4Banger HXB is approximately 30% smaller than alternatives that offer comparable performance. This allows for an unbeatable OEM+ like fitment when paired with Morimoto's fog light or A-Pillar mounting kits, which are available for today's most popular trucks. Don't be that guy with LED pods bulging out of your bumper.

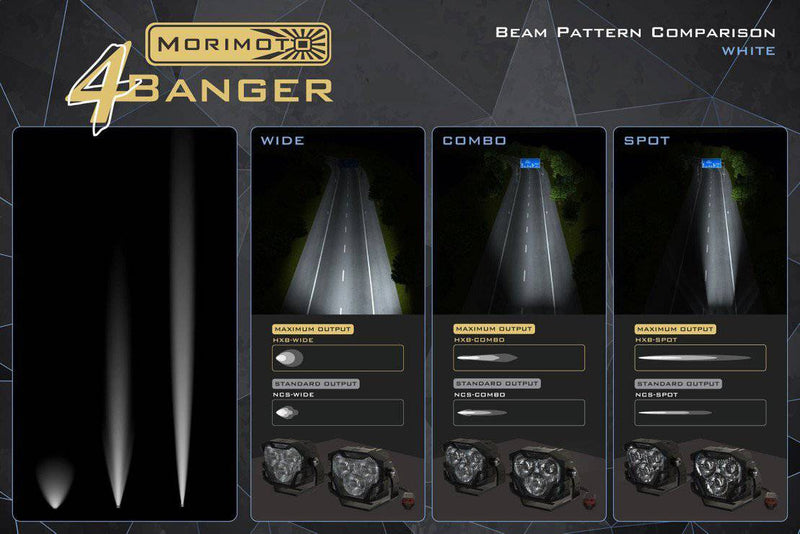

PERFORMANCE: There are no "off the shelf" guts inside of a fancy housing here. Every element of the 4Banger HXB is proprietary. LucidShape was used to optimize performance around the most modern, lumen-dense LEDs from Osram. Thermal dynamics have been optimized using SolidWorks. The 4Banger HXB is available with three industry-leading beam patterns to suit every need. Wide/Fog, Spot, and Combo. Patent Pending Design.

ALL WEATHER: The white-output version is ideal for all-around visibility. For those who desire optimal output in rain, snow, or fog--the Yellow-output version will slay in shady weather. Morimoto has opted for LEDs that produce yellow light at the origin, which is the most effective way to penetrate through particles in the air without compromising output (Filtering white light through a yellow lens achieves the look, but no actual performance benefit in poor weather).

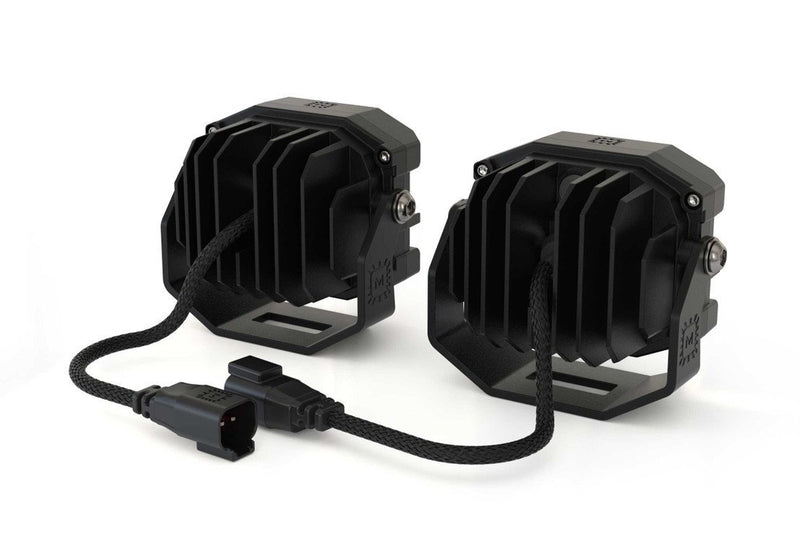

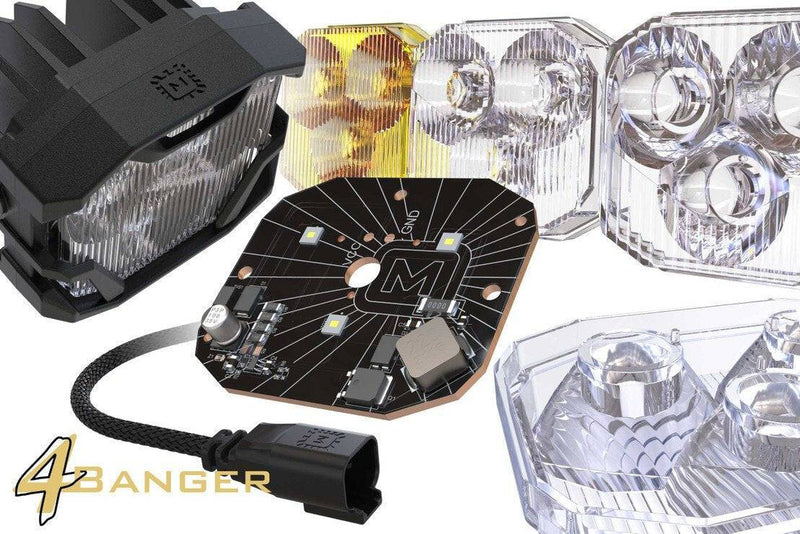

RELIABILITY: With power comes great responsibility. Extensive effort went into ensuring the reliability of the product. High power means high heat, which is why the 4Banger features a copper DTP (direct thermal path) PCB that maximizes heat-transfer to the radiator, which has been optimized through numerous rounds of thermal analysis. The cast aluminum shell is electroplated before powder coating to withstand flaking. The potted internals, over-molded input wiring, and main gasket are all designed according to IP69K standards for full weather resistance.

BOLT-ON: Each set of Morimoto 4Banger LED pods include a set of pedestal mounts for a universal fitment. Morimoto also offers a variety of application-specific mounting bracket kits for fog lights and A-Pillars that make them bolt-on for many of today's most popular trucks. Check out the full lineup for details on what's available for your application.

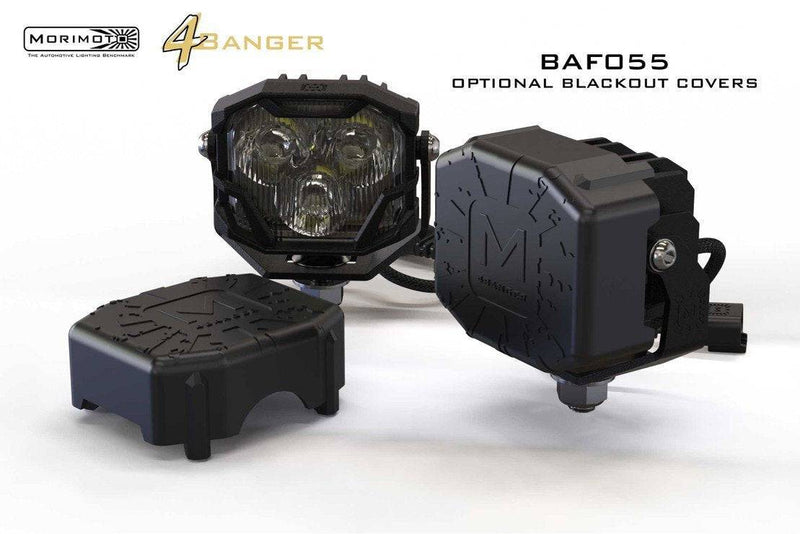

STREET LEGALITY: When aimed properly, the Spot and Combo beams comply with SAE J581 standards for an for auxiliary high beam. If you're looking for a high-performance street-legal LED pod to use as a fog light, both the NCS and HXB Wide beam models are SAE J583 compliant for use as a street legal fog light. (See full test report here) . While the HXB Wide Beam has a very similar beam pattern, it is too bright to pass as a street legal fog light. Some localities require auxiliary lights to be covered for everyday driving. To comply, the optional Blackout Covers are designed to fit all Morimoto 4Banger LED Pods, and are a friction + clip fit that installs with ease, and can be removed in seconds.

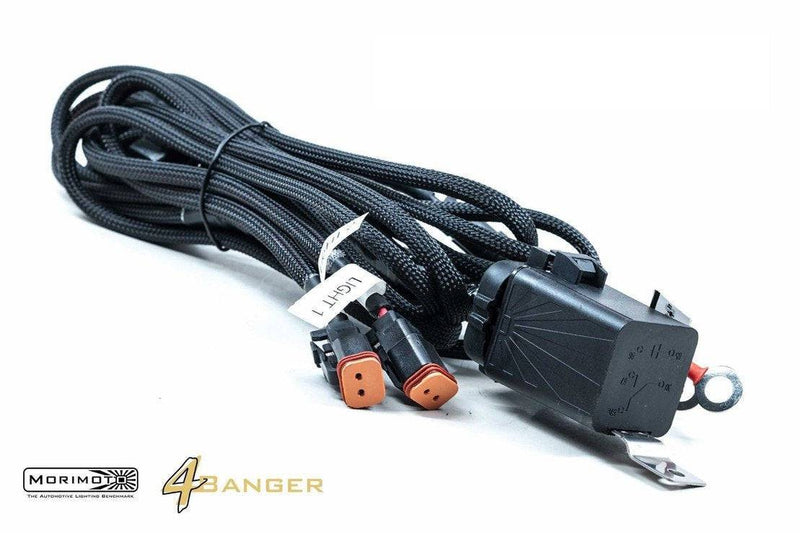

POWER UP: The Morimoto 4Banger LED Pods have been developed from the ground up to set a new standard in their segment, and the same goes for the optional wire harness. If you want the best, bingo. Not one component on the harness was overlooked for the sake of cost or simplicity. Triple sealed proprietary 4-pin relay with hanger. Proprietary over-molded inline fuse holder with 20A mini fuse. DT06-2S female outputs with dual seals. Stainless steel power and ground terminals. Proprietary M-Spec push button switch with Yellow-LED backlight.


  • LED PODS: 2x (One Pair) Morimoto 4Banger HXB Spot (White or Yellow)
  • BRACKETS: 2x (One Pair) Universal U-Shape Mounts
  • HARDWARE: Complete pack (stainless steel)
  • OPTIONAL WIRING: 1x Morimoto 4Banger Switched Relay Harness or DT Connectors
  • WARRANTY: Limited Lifetime (Click for Details)


  • UNIVERSAL: With Included U Brackets
  • FORD F150: 15-20 with BAF013 and BAF038
  • FORD F150: 07-14 with BAF020 and BAF037
  • FORD RAPTOR: 16-21 with BAF024 and BAF038
  • FORD SUPER DUTY: 17-21 with BAF013 and BAF039
  • FORD SUPER DUTY: 99-16 with BAF021 and BAF040
  • 4RUNNER: 2010+ With BAF014 and BAF027
  • TACOMA: 05-13 with BAF019 and BAF029
  • TACOMA: 14-21 with BAF014 and BAF028
  • TUNDRA: 07-13 with BAF019 and BAF030
  • TUNDRA: 14-21 with BAF014 and BAF026
  • SILVERADO/SIERRA: 14-19 with BAF015 and BAF031
  • SILVERADO/SIERRA: 07-13 with BAF032
  • COLORADO/CANYON: 15-21 with BAF015
  • RAM (ALL): 06-08 with BAF045
  • RAM 1500: 2019+ with BAF016
  • RAM 1500: 09-18 with BAF018 and BAF033
  • RAM HD: 09-18: with BAF017
  • RAM HD: 2019+ with BAF034
  • NISSAN TRUCKS: 05-20 with BAF016
  • SUBARUS (MOST): 10-18 with BAF016
  • WRANGLER JK: 07-17 with BAF023 and BAF035
  • WRANGLER JL: 18-21 with BAF036
  • CHEROKEE: 11-17 with BAF023


  • INTENSITY (WHITE): 170,000 Cd (@20 Min / 21C Ambient) (1,700lux @ 10m)
  • INTENSITY (YELLOW): 119,000 Cd (@20 Min / 21C Ambient) (1190lux @ 10m)
  • INPUT: Proprietary Overmolded Deutsch DT 2-Pin w/ Pigtail
  • POWER: 42w
  • CURRENT: 3.2A @ 13.2V DC

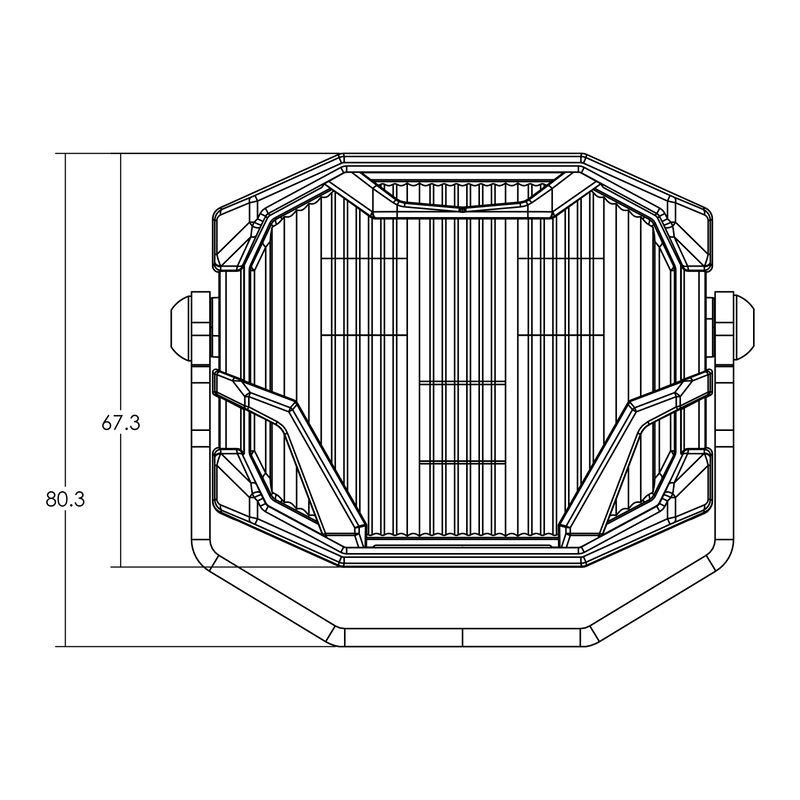

  • DIMENSIONS: 82mm W, 67mm H, 60mm D
  • LIGHT SOURCE: 3x Osram HX Boost (5700K)
  • MATERIAL: Makrolon LED PC (Lens), Powdercoated Die Cast Aluminum (Housing)
  • IP RATING: IP68K (Dust / High Pressure Water Resistant)
