21+ Ford Bronco 8-Switch Pros Panel w/ Mounting Kit

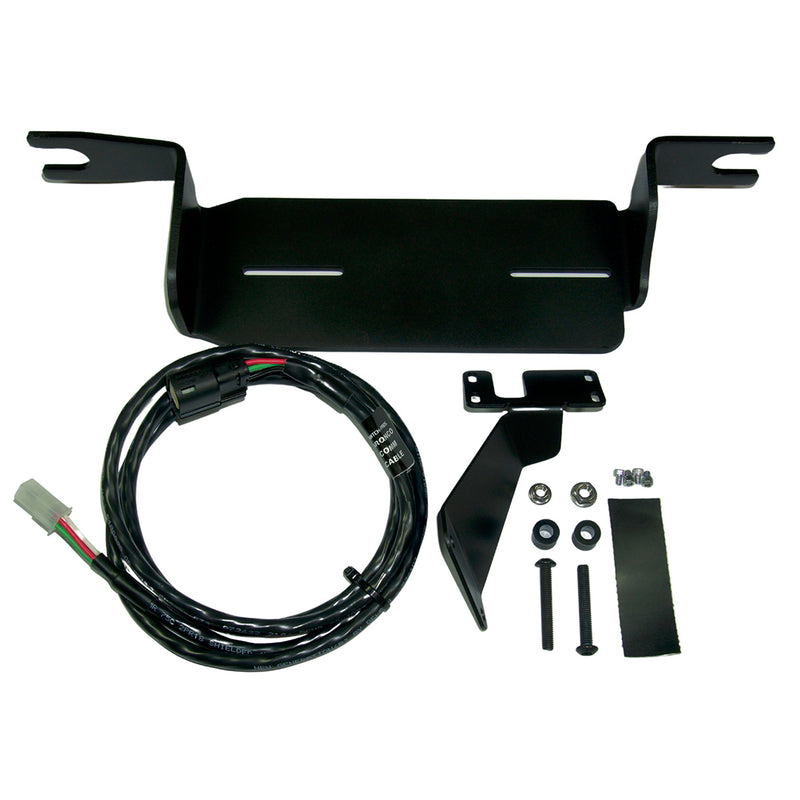

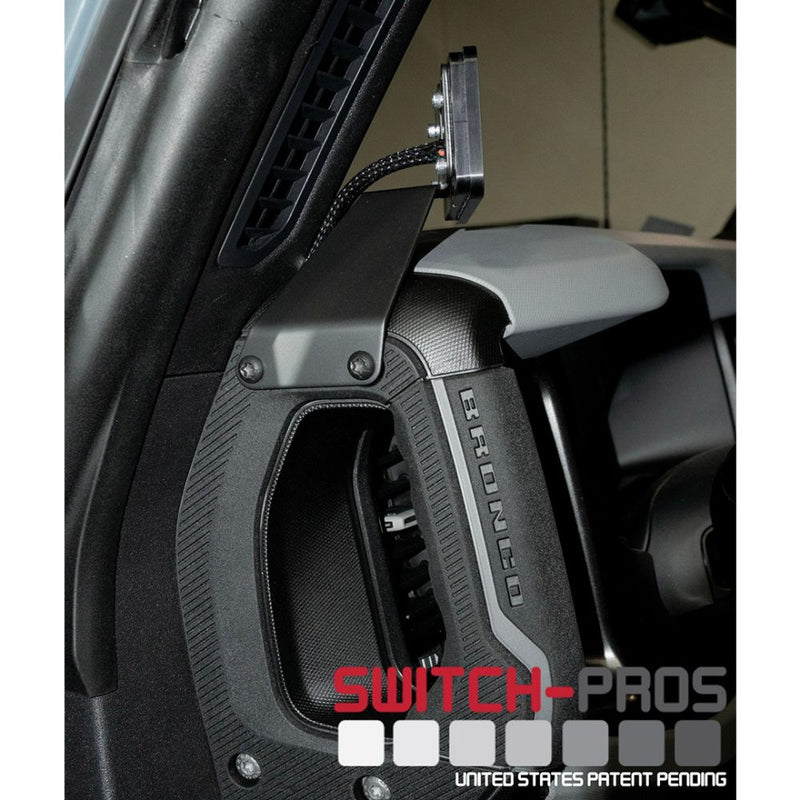

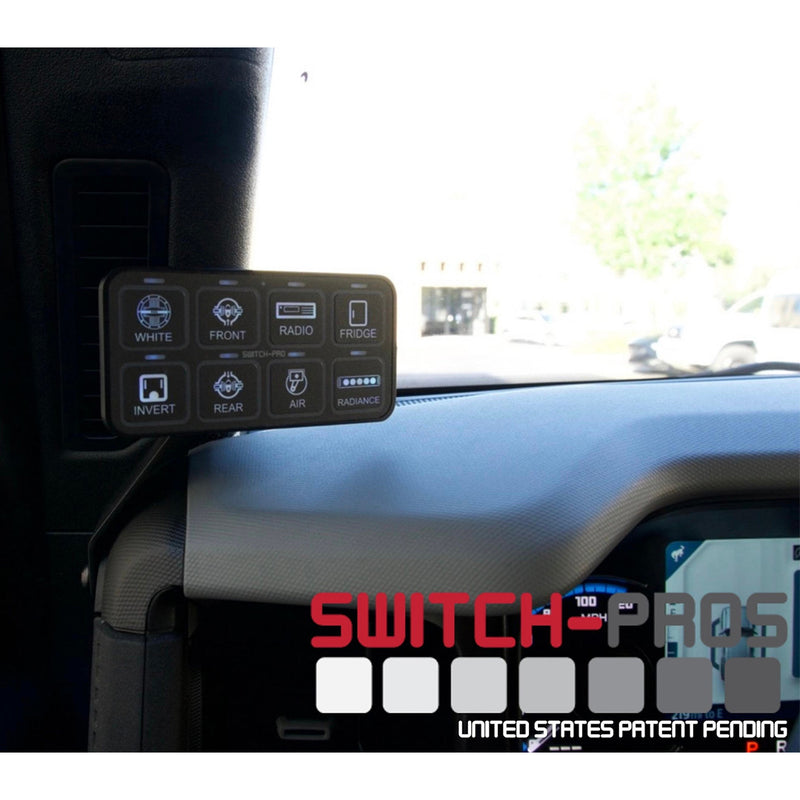

2021+ Ford Bronco grab handle mounting solution for SP9100 & RCR-Force®12 systems. Positions switch panel above Driver's grab handle. Kit includes a switch panel bracket, power module bracket, 5.5' communications cable, and mounting hardware.

The Switch-Pros Bezel Style 8-Switch Panel Power System is equipped with eight programmable switches that you as the user can customize. This durable blue-tooth compatible switch panel is waterproof, has a memory function, and you may select from 100 different selectable legends. Utilize the blue-tooth function by downloading a free app on your Apple or Android cellular device. To save on power the switch panel is equipped with a sleep mode and may be started again automatically upon vehicle start-up.

Power Module Specs:

• Built-In Bezel Style Switch Panel includes concealed mounting hardware for factory-look installation.
• Orange LED switch indicators
• Four 35A circuits and four 18A circuits

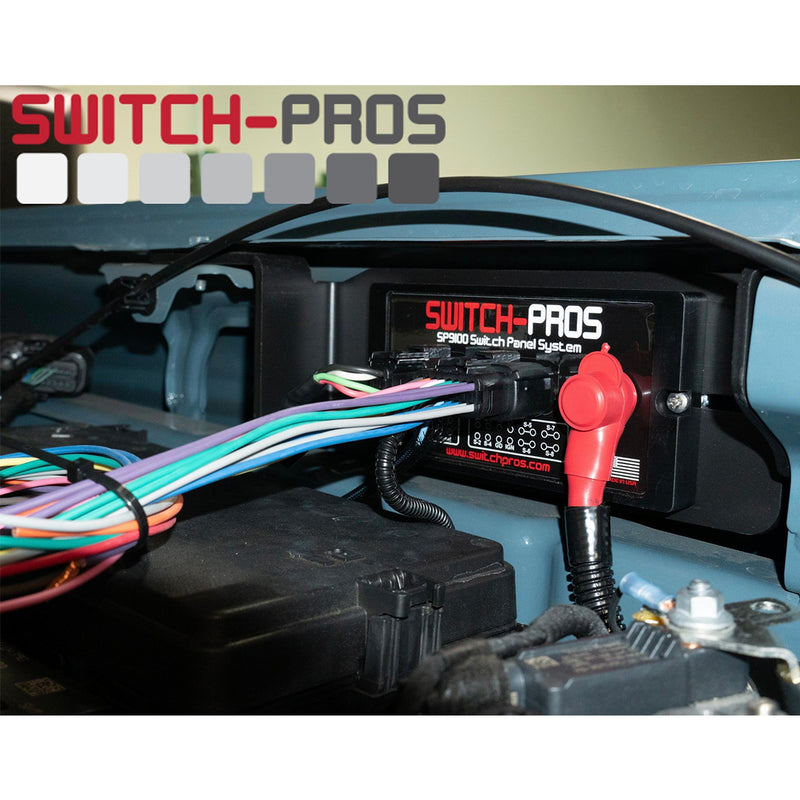

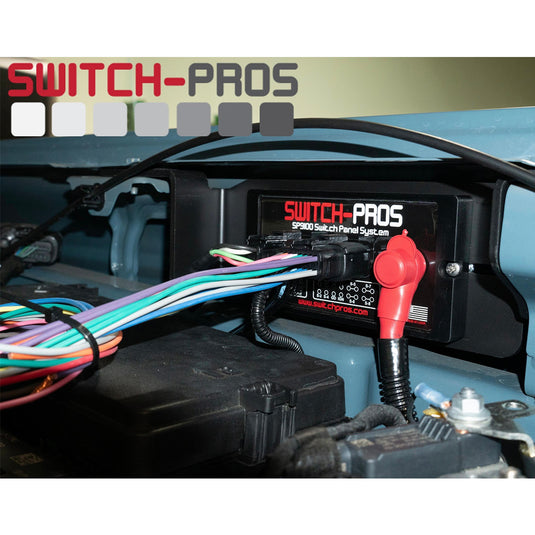

• Solid State 125A Power Module
• RGB Backlighting provides unlimited color options, using Color Picker on the App.
• Daisy Chain up to 3 Switch Panels to One Power Module.
• Switches can be programmed for: On/Off or Momentary
• Ignition or Battery Input
• Flash or Strobe, with User-Selectable Strobe patterns and One Touch Activation
• Master Mode, with the ability to turn multiple outputs On AND Off with one-touch
• Two External trigger inputs can each activate up to four outputs (Active Hi or Active Low)
• Lighting outputs can dim from 100% to 10%, with the ability to dim during Flash or Strobe patterns
• Color-Coded circuit wires
• LED Input Status Indicators for easy troubleshooting
• Time Delay Off function available for all circuits
• Splashproof switch panel with Polycarbonate overlay faceplate
• Program and control the system from a switch panel pad or smartphone
• Battery Voltage Readout on the App screen
• No Fuses or Bulky Relay box

Switch Panel Specs:

• RGB Backlighting provides unlimited color options, allows for exact matching to factory dash lighting
• 8 Outputs: 4 rated @ 35A, 4 rated @ 18A
• 125A maximum rating
• Waterproof and Solid State
• LED Input Status Indicators for easy troubleshooting
• Underhood rated 125° to -40°C

 Kit Also Includes:

• 11 feet of Communication Cable between the Switch Panel and the Power Module
• Color-Coded Output wires
• Wire harness with Waterproof sealed automotive-grade connectors
• Power Cable with 125A inline fuse

Included Part Numbers:
