2021+ Ford Bronco SS3 Ditch Light Bracket kit

Regular Price $180.00
Sale Price $180.00 Regular Price
Sale Sold Out
Unit price
/per
Shipping calculated at checkout.
Optic and Color:
White
Amber
Power Level:
Harness:
This is a pre order item. We will ship it when it comes in stock.

SKU: 96820

Features

  • Bolt-on fitment for 2021 Ford Bronco.
  • Allows you to mount two Stage Series LED Pods in the a-pillar location.
  • Utilizes factory Accessory Ready mounting points for a simple installation.
  • Advanced TIR optics provide high efficiency and focus.
  • Engineered and Assembled in USA.

Overview

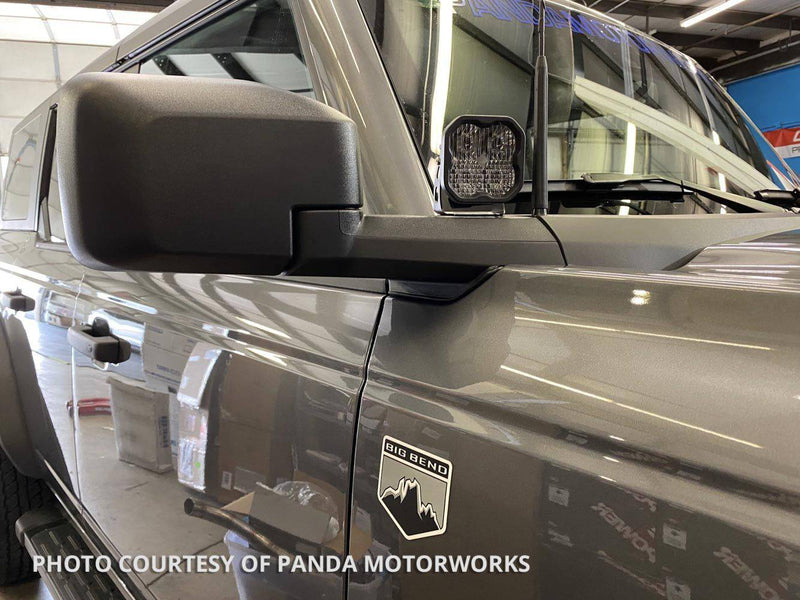

Perfect fitment. The Stage Series SS3 Ditch Light Kit for the 2021 Ford Bronco allows you to easily mount two SS3 Pods to the factory Accessory Ready mounting points near the a-pillar location, above the hood. No cutting or drilling required! This kit will not interfere with the antenna, or raising and lowering the hood.

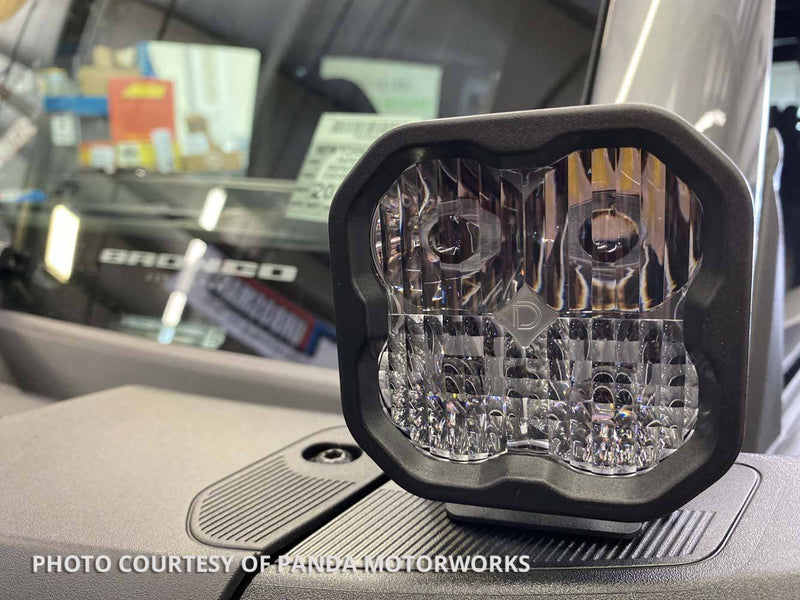

Focused. Traditional optics like reflectors or simple lenses lose light internally and to glare, so not all of the light shines on target. Instead, the custom-engineered TIR optic in the SS3 collects all of the light from the LED, and directs it only where you need it, drastically reducing glare and improving total efficiency. Click here to learn more: Total Internal Reflection (TIR) Optics | Stage Series Video.

From there, while other options on the market lose as much as 10% of the light output shining through an outer lens, the custom-molded TIR optic in the SS3 serves as both the optic and main lens for greater efficiency and light output (patent pending). Thanks to this innovative feature, when coupled with high-intensity LED chips, the total intensity of the SS3 is much greater than other LED pods using basic optics or reflectors with a standard outer lens.

Functional Pattern. All Stage Series beam pattern options were designed with optical simulation modeling, to shape the output in a highly-functional beam pattern. No matter what your auxiliary lighting needs are, there is a Stage Series optic for you!

Combo pattern combines both the Driving and Flood optics. It shines light downrange in a focused, rectangular 65x25 degree pattern. The combo lens features a flood optic on one side and a driving optic on the other.

SS3 Beam Pattern

For states that require them, we also offer snap-on covers for your SS3 Pod. These covers are available in a variety of colors and keep your SS3 Pod clean and protected from dirt, dust, or whatever else the road throws your way!

White or Yellow. All Stage Series LED pods are available in a cool white or selective yellow color. The white is a 6000K color temperature, which is a true cool white output, and matches most factory LED lighting. The selective yellow is a 3000K color temperature, great for high contrast in poor weather or a distinctive look on the road. We also offer replacement lenses that allow you to change the color or optic of your SS3 Pods.

Sport, Pro, or Max. Stage Series LED pods are available at three different power levels. All options use high-intensity LED emitters, and TIR optics for unmatched focus and overall output. The Sport model uses high-intensity LEDs and is the best bang for the buck you’ll find. The Pro model steps things up in a big way, with double the total power. Finally, the Max model is designed with cutting-edge automotive emitters, for both high power and extreme intensity. This brand new technology comes at a cost, but if you’re looking for the absolute best in lighting performance, the SS3 Max is the answer. Click the Specifications tab to see more information.

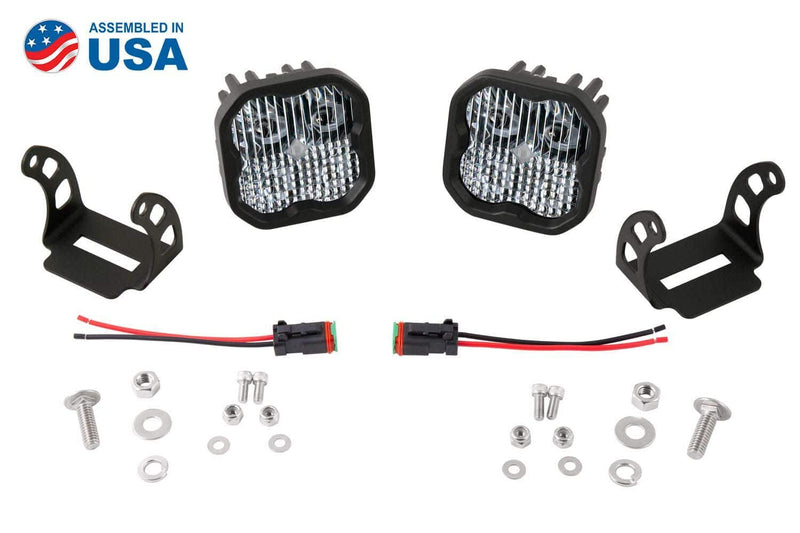

Simple connections. All SS3 LED pods feature a custom-molded DT type Deutsch-style connector on the back, and come with a 6-inch pigtail with bare leads. For installation, you can wire yourself, use an off-the-shelf Deutsch DT sized wire harness, or select an optional Diode Dynamics wire harness. Our Light Duty Dual Output Harness can be used to power up to two SS3 pods. You can also use our OEM Auxiliary Switch Dual-Output Wiring Harness to control your LED pods using the factory-installed aux switch bank.

Proven Reliability. Stage Series LED lighting has been extensively tested for long-term operation from -40 to 185 degrees F, along with vibration, moisture intrusion, and corrosion testing. All of these tests are completed to SAE standards, just like factory components. They've also been put to the test on-road by racers and enthusiasts alike.

Experience. After over a decade in business, Diode Dynamics is one of the most trusted names in automotive LED lighting. We directly assemble and engineer our own products in the United States, allowing for higher quality and performance, with the newest and brightest LED technology. No matter what you're driving, we pride ourselves in offering only the best possible LED solutions. Please contact us if you'd like to discuss your lighting project!

LENS COLOR/OPTICS

PEAK BEAM INTENSITY
(CANDELA)

ILLUMINANCE
(LUX @ 10M)
MEASURED OUTPUT
(LUMENS)
RAW OUTPUT
(LUMENS)
OUTPUT COLOR
Combo White Sport 31,500 cd 315 lux 1,520 lm 2,262 lm 6000K White
Combo White Pro 35,100 cd 351 lux 3,000 lm 5,796 lm 6000K White
Combo White Max 46,000 cd 460 lux 3,500 lm 7,920 lm 6000K White
Combo Yellow Sport 28,100 cd 281 lux 1,300 lm 1,930 lm 3000K Yellow
Combo Yellow Pro 33,406 cd 334 lux 2,700 lm 5,220 lm 3000K Yellow
Power (watts): SS3 Sport: 14.5, SS3 Pro: 36, Max: 38.5
Operating Voltage: 9-16V
Current (amps @ 12.8V): Sport: 1.1, Pro: 2.7; Max: 3
Polarity: Polarity Specific
Operating Temperature: -40C to 85C (-40F to 185F)
Connector(s): Deutsch DT Input
Driver Features: Constant Current
Materials: Polycarbonate Lens, Aluminum Casting, Rubber Gasket
Cooling: Passive, Pin-Fin heatsink
Intrusion Ratings: IP69K Waterproof, High Pressure
